TRENDnet 10-Port Multi-Gig Web Smart PoE+ Switch, 8 x 2.5GBASE-T PoE+ Ports, 2 x 10G SFP+ Slots, Metal Housing, Managed Network Ethernet Switch, Lifetime Protection, Black, TPE-3102WS

From the manufacturer

TRENDnet’s Multi-Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. Each of these rack-mountable IPv6-ready managed switches come with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports TPE-3102WS together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making these 2.5G managed PoE+ switches with 10G SFP+ slots powerful solutions for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

These multi-gigabit managed PoE+ switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each multi-gig managed PoE+ switch also offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The switch design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 2.5G managed PoE+ switches with 10G SFP+ slots offer cost-effective solutions to increase your network’s throughput.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Multi-Gig Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With these 2.5G managed PoE+ switches, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

FEATURES

10G SFP+ Slots

Offers two ultra-fast 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability.

Web Smart Management

Provides an easy-to-use web-based GUI management for reduced switch configuration complexity, and offers a combination of SMB management features for easy deployment.

2.5G Ports

Equipped with eight high-speed 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

NETWORKING SOLUTION

TRENDnet TPE-3102WS , 10-Port Multi-Gig Web Smart PoE+ Switch

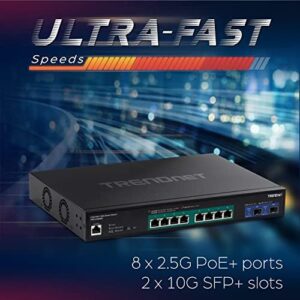

• 8 x 2.5GBASE-T PoE+ ports

• 2 x 10 SFP+ slots

• 240W PoE power budget

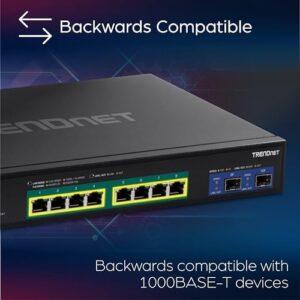

• Backwards compatible with 1000BASE-T devices

• Easy-to-use web-based management interface

• PoE alive check automatically attempts to recover an unresponsive PoE device connected

• Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping

• Bandwidth control per port

• Private, Multicast, and Voice VLAN support

• 1U 19” rack mountable

• 80Gbps switching capacity

• IEEE 802.3bz (2.5G) compliant

• IEEE 802.3ae (SFP+) compliant

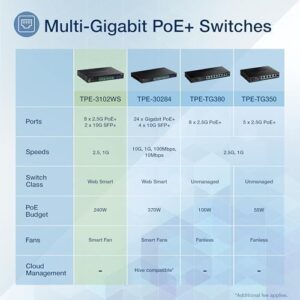

Ports
8 x 2.5GBASE-T PoE+ ports; 2 x 10G SFP+ slots 24 x Gigabit PoE+ ports ; 4 x 10G SFP+ slots 8 x 2.5GBASE-T PoE+ ports 5 x 2.5GBASE-T ports

Speeds
2.5G,1G 10G,1G,100Mbps,10Mbps 2.5G,1G 2.5G,1G

Switch Class
Web Smart Web Smart Unmanaged Unmanaged

PoE Budget
240W 370W 100W 55W

Fans
Smartfan Smartfans Fanless Fanless

Cloud Management
– Hive Compatible (additional fee applies) – –

2.5G PORTS: This 12 Port Multi-Gig PoE plus Ethernet switch is equipped with eight 2.5GBASE-T RJ-45 ports that provide multigigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling
10G SFP plus SLOTS: The managed switch offers two 10G SFP plus slots for high-speed network connections providing a cost-effective solution in adding 10G link capability
POE POWER: Supplies up to 30W of PoE plus power per port with a 240W power budget
EASY INSTALLATION: No configuration needed, simply connect network devices to the Gigabit Ethernet switch
SWITCHING CAPACITY: 80Gbps switching capacity; TRAFFIC MANAGEMENT: A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling
WEB SMART MANAGEMENT: Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.
